- Sku: C920-24112

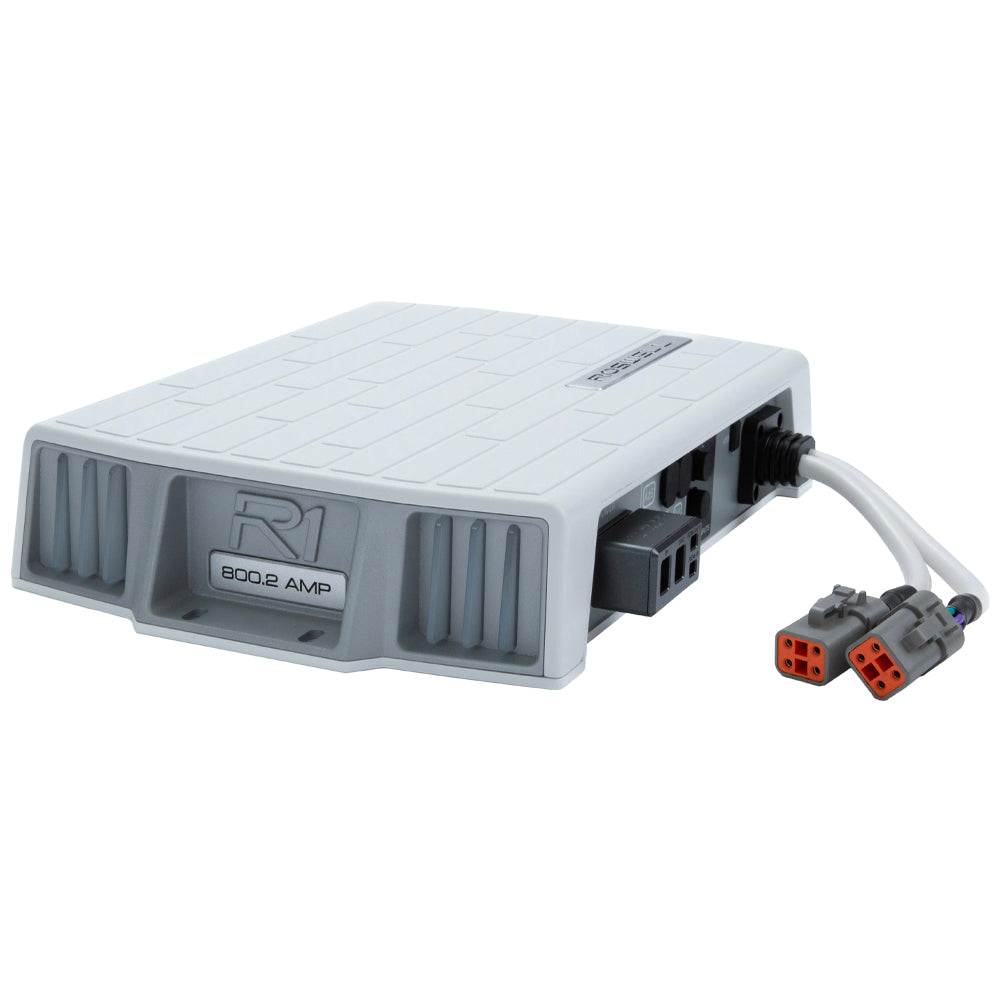

R1 Pro 800.2 Marine Amplifier with GaN Technology
R1 Pro Marine Audio Ecosystem
The industry’s first 100% digital audio solution has arrived with Roswell R1 Pro Marine Amplifiers and PATH Digital Audio Interface. The all-new R1 Pro Ecosystem was engineered from the ground up to integrate with modern on-board electronics, delivering unmatched efficiency, and high-fidelity, pure, lossless audio quality from instrument to ear.
R1 Pro Amplifiers with GaN Technology
R1 Pro Amplifiers introduce Roswell’s Advanced Circuit Architecture (ACA) and Gallium Nitride (GaN) technology to deliver increased dynamic range and power output while reducing noise and current draw. Integrated, full feature Digital Signal Processing (DSP) provides direct control of all amplifier operational and protection functions, ensuring consistent, high-fidelity audio performance under extreme marine conditions.
Features
|
Industry-First 100% Digital Class D Amplification |
GaN Technology |
|
R1 Pro Advance Circuit Architecture |
Full-featured DSP (Digital Signal Processing) |
|
R1 Pro Compose - Configuration and Tuning Software |
A2B® Digital Audio Networking |
|
Status Monitoring |
Removable Power Terminal Block |
|
Stackable Design |
Specifications
| CONTINUOUS POWER (RMS) |
200W @4Ω | 400W @2Ω |
| BRIDGED POWER (RMS) |
~800W @4Ω (Next-Generation Output Topology) |
| TRUE DIFFERENTIAL RCA INPUT SENSITIVITY |
6V RMS |
| SIGNAL/NOISE RATIO | 107dB unweighted |
| THD+N AT RATED POWER @4Ω |
<0.3% 20 Hz - 20 kHz |
| FREQUENCY RESPONSE |
(+/- 0.5 db): 20 Hz-20 kHz |
| IPX3 | |
| DIMENSIONS | Coming Soon |

R1 Pro 800.2 Marine Amplifier with GaN Technology
